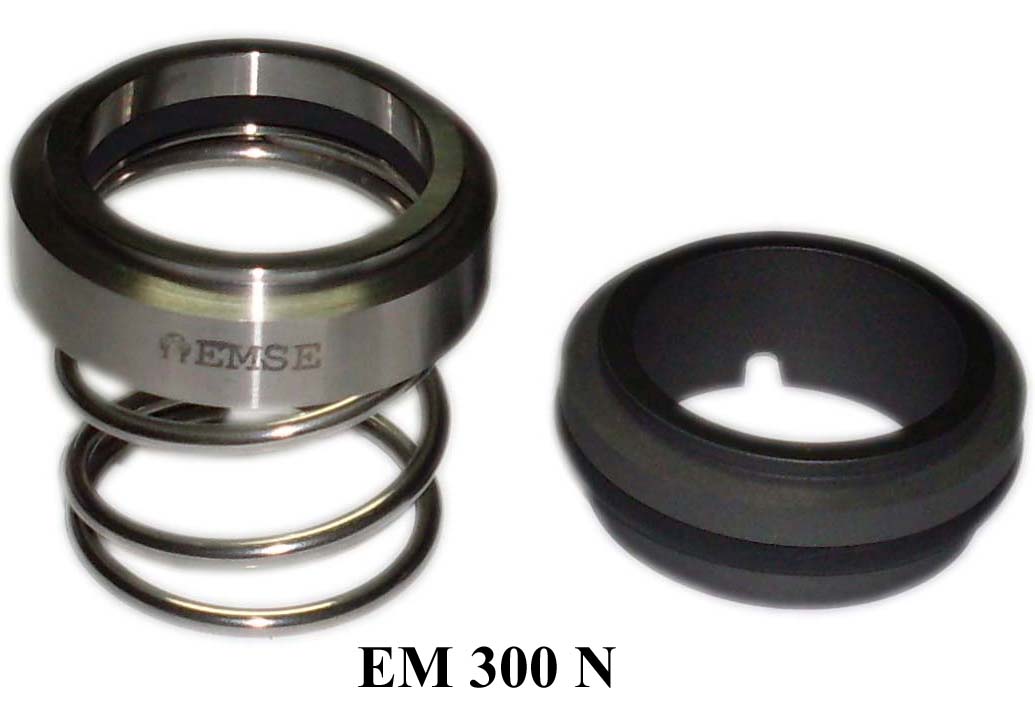

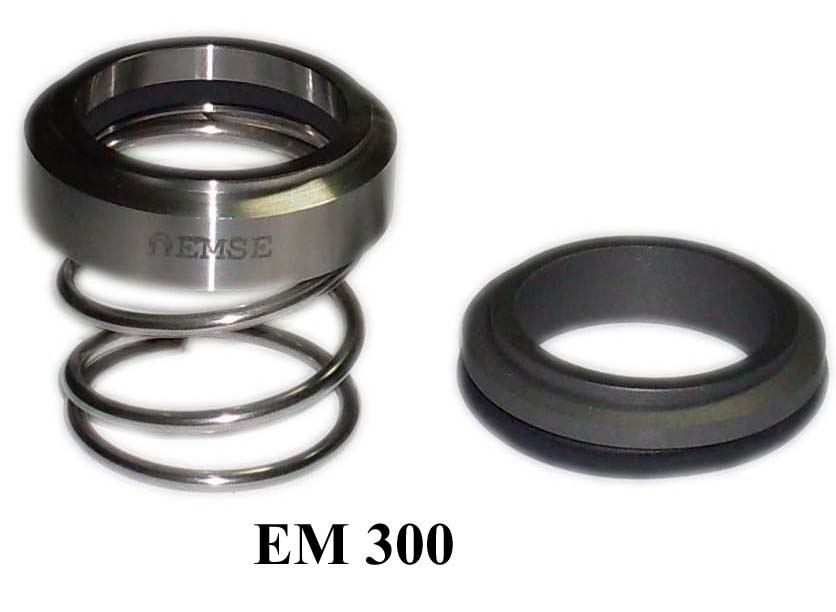

EM 300N- EM 300 Mekanik Salmastraları



EM 300ve 300 N Tip Mekanik Salmastra Malzeme Kombinasyonları
 Tekli mekanik salmastra
Balansız
Dönme yönünden bağımsız
EM 700 N DIN 24960 normuna uygun
Em 700 N makanik salmastraları yaprak yaylı veya çok yaylı, O-ringli, baskı elemanı serbest geçmeli bir dizayna sahiptir. Yay düzeni sayesinde aşırı yüzey aşınması engellenmiştir. Standart uygulamalar için idealdir.EM 700 modelini sabit eleman montaj ölçüleri ile farklılık arzeder.Bu model salmastralar standart normuna uygundur.Malzeme kombinasyonu olarak EM 700 N ile aynı kombinasyonlara sahiptir

Salmastra Yüzeyleri Sabit Modeli Sabit Modeli
Sabit yüzey Döner Yüzey EM 300 EM 300 N
Karbon Metal EM 13 EM 9
İşletme sınırları
Çap (mm) 16-80
Basınç (bar) 10
Sıcaklık(C) -80/200
Hız(m/s) 20

1-Baskı
2-Sabit eleman
3-Baskı pulu
4-Yay
5-Oring
6-Oring

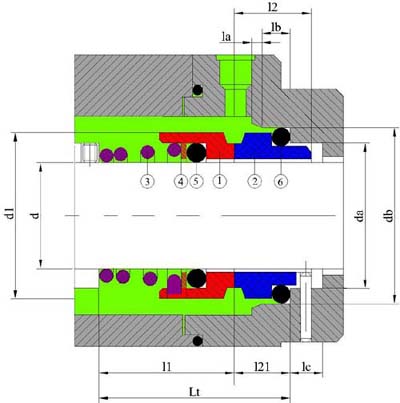

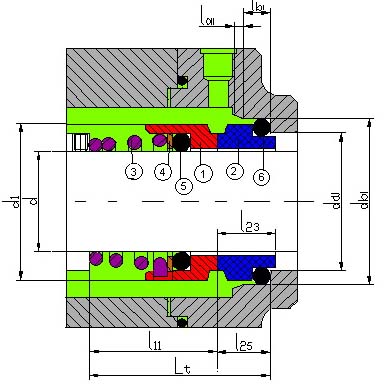

d d1 da db da1 db1 Lt l1 la lb lc l2 l21 l25 la1 lb1 l11 l23
6 14 - - 11,5 16,0 - - - - - - - 7,1 1,2 3,8 10,5 9,0
8 18 - - 15,5 19,0 - - - - - - - 7,1 1,2 3,8 15,5 9,0
10 19 17 21 15,5 19,2 40 15,5 1,5 4 8,5 17,5 10,0 7,1 1,2 3,8 15,5 9,0
12 21 19 23 17,5 21,5 40 16,0 1,5 4 8,5 17,5 10,0 7,6 1,2 3,8 15,5 10,0
14 23 21 25 20,5 24,5 40 16,5 1,5 4 8,5 17,5 10,0 7,6 1,2 3,8 15,5 10,0
15 24 - - 20,5 24,6 - - - - - - - 8,6 1,2 3,8 15,5 11,0
16 26 23 27 22,0 28,0 40 18,0 2,0 4 8,5 17,5 10,0 9 1,5 5,0 17,5 11,5
18 29 27 33 24,0 30,0 45 19,5 2,0 5 9,0 19,5 11,5 10 1,5 5,0 18,5 12,5
20 31 29 35 29,5 35,0 45 22,0 2,0 5 9,0 19,5 11,5 9,5 1,5 5,0 20,0 12,5
22 33 31 37 29,5 35,0 45 21,5 2,0 5 9,0 19,5 11,5 9,5 1,5 5,0 21,5 12,5
24 35 33 39 32,0 38,0 50 23,5 2,0 5 9,0 19,5 11,5 9,5 1,5 5,0 23,0 12,5
25 36 34 40 32,0 38,0 50 26,5 2,0 5 9,0 19,5 11,5 9,5 1,5 5,0 24,5 12,5
26 37 - - 34,0 40,0 - - - - 9,0 - - 10 1,5 5,0 24,5 13,0
28 40 37 43 36,0 42,0 50 26,5 2,0 5 9,0 19,5 11,5 11 1,5 5,0 24,5 14,0
30 43 39 45 39,2 45,0 50 26,5 2,0 5 9,0 19,5 11,5 11 1,5 5,0 24,5 14,0
32 46 42 48 42,3 48,0 55 28,5 2,0 5 9,0 19,5 11,5 11 1,5 5,0 28,0 14,0
33 47 42 48 - - 55 28,5 2,0 5 9,0 19,5 11,5 - - - - -
35 49 44 50 46,2 52,0 55 28,5 2,0 5 9,0 19,5 11,5 11,5 1,5 5,0 28,0 14,5
38 53 49 56 49,1 55,0 55 33,5 2,0 6 9,0 22,0 14,0 11,5 1,5 5,0 31,0 14,5
40 56 51 58 52,2 58,0 55 36,0 2,0 6 9,0 22,0 14,0 11,5 1,5 5,0 34,0 14,5
42 59 - - 53,2 62,0 - -   - 9,0 - - 14,3 2,0 6,0 35,0 17,0
43 59 54 61 - - 60 38,5 2,0 6 9,0 22,0 14,0 - 2,0 - - -
45 61 56 63 55,3 64,0 60 39,5 2,0 6 9,0 22,0 14,0 14,3 2,0 6,0 36,5 17,0
48 64 59 66 59,8 68,5 60 46,0 2,0 6 9,0 22,0 14,0 14,3 2,0 6,0 42,0 17,0
50 66 62 70 60,9 69,3 60 45,0 2,5 6 9,0 23,0 15,0 14,3 2,0 6,0 43,0 17,0
53 69 65 73 - - 70 47,0 2,5 6 9,0 23,0 15,0 - - - - -
55 71 67 75 66,5 75,5 70 49,0 2,5 6 9,0 23,0 15,0 15,3 2,0 6,0 47,0 18,0
58 76 70 78 69,5 78,5 70 55,0 2,5 6 9,0 23,0 15,0 15,3 2,0 6,0 50,0 18,0
60 78 72 80 71,5 50,5 70 55,0 2,5 6 9,0 23,0 15,0 15,3 2,0 6,0 51,0 18,0
63 83 75 83 - - 70 55,0 2,5 6 9,0 23,0 15,0 - - - - -
65 84 77 85 76,5 85,5 80 55,0 2,5 6 9,0 23,0 15,0 15,3 2,0 6,0 52,0 18,0
68 88 81 90 82,8 91,5 80 55,0 2,5 7 9,0 26,0 18,0 16 2,0 6,0 53,0 19,0
70 90 83 92 83,0 92,0 80 57,0 2,5 7 9,0 26,0 18,0 15,3 2,0 6,0 54,0 18,0
75 98 88 97 90,2 99,0 80 62,0 2,5 7 9,0 26,0 18,0 15,3 2,0 6,0 55,0 18,0
80 100 95 105 95,2 104 90 61,9 3,0 7 9,0 26,2 18,3 16,3 2,0 6,0 58,0 19,0
